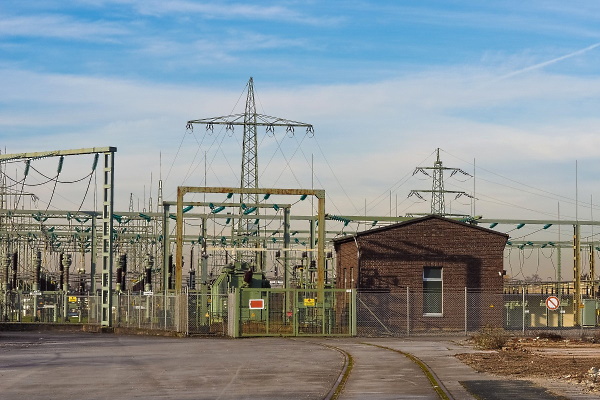

      Substation construction

      Electrical substation construction services
      Our company is engaged in the financing and construction of electrical substations around the world, offering innovative technical solutions for business.
      ►  We offer project finance and investments: from $ /€ 5 million or equivalent with a loan duration up to 20 years
      • Description
      • Industries and Services
      • Publications
      Description
      Substations are a complex facility involved in the transmission and distribution of electricity.

      There are many types of substations including distribution, transmission, collector, converter, etc.

      Their complex technical structure implies the presence of many basic and auxiliary elements.

      The construction of electrical substations, like the construction of any other industrial facility, consists of several stages: survey, design, civil works, electrical work, testing and commissioning.

      This process is carried out by a multidisciplinary team of specialists using modern equipment, extensive experience and technical knowledge in various fields.

      Our specialists, together with partners, implement new projects, as well as modernizing existing substations of any type.

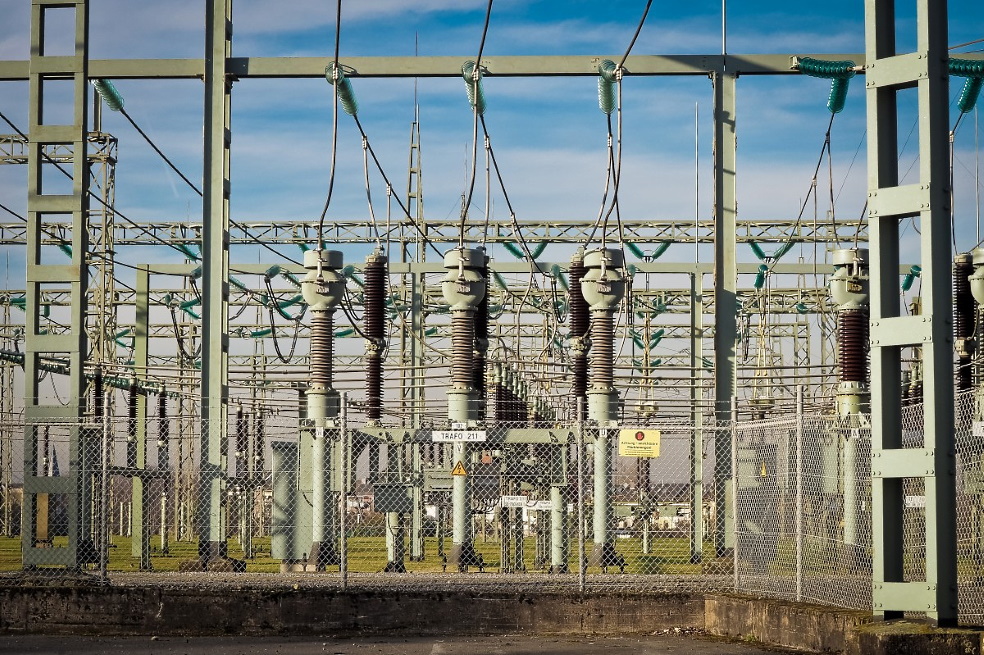

      Electrical substation construction

      The construction of an electrical substation typically includes several stages:

      • preparation of the construction site and earthwork;
      • laying the foundation and supply of external networks;
      • construction of supporting metal structures;
      • assembly and installation of electrical equipment;
      • installation and configuration of auxiliary systems;
      • landscaping and cleaning construction waste;
      • testing and commissioning.

      The main elements of the electrical substation are a power transformer, cable lines, low and high voltage switchgears, bus systems and much more.

      Another important element is its own power supply system, which includes transformers, AC and DC panels, as well as capacitor banks.

      An important stage in the construction process is the design of safety and control systems, automation and grounding systems, lightning protection, control equipment and reactive power compensation systems.

      Auxiliary systems include lighting, ventilation, air conditioning and fire protection systems.

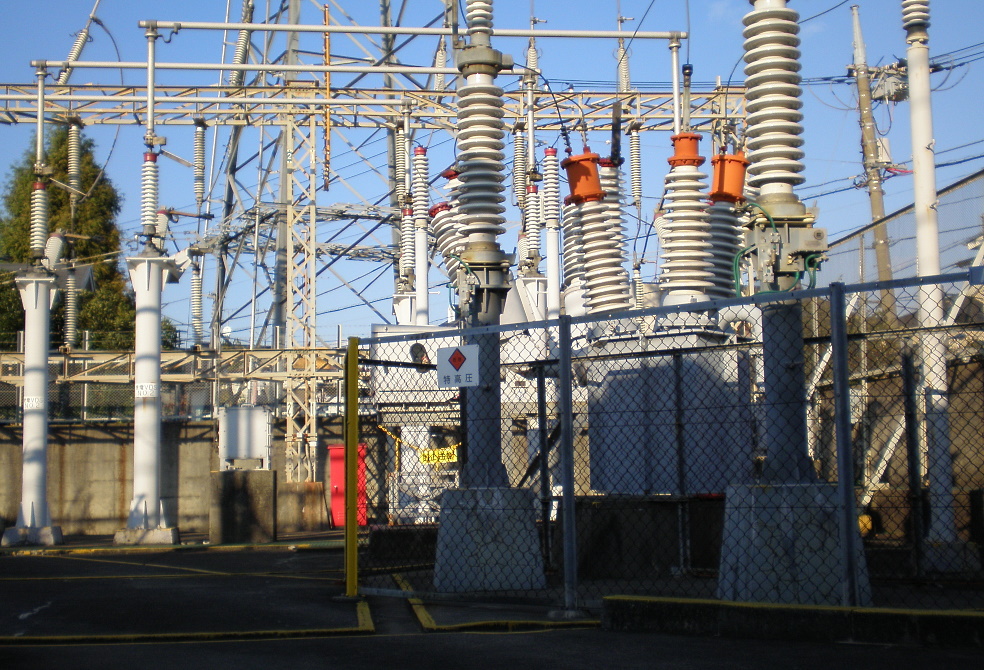

      Construction of high voltage electrical substations

      Ultra-high-voltage and high-voltage substations are powered by high-voltage power lines, which are used to import and export electricity over long distances.

      Standards for such substations vary by country.

      Construction of high voltage electrical substations

      For example, in the countries of Eastern Europe and the former USSR high-voltage substations are designed for voltage of 1250 kV, 750 kV or 400 kV.

      They almost always have a synchronous compensator (50-100 MVA) or more to compensate for reactive power. High voltage electrical substations are usually staffed by highly qualified personnel. The remote and telemetry information system is also very developed.

      They consist of two or three high-voltage and ultra-high-voltage switchgears. High voltage levels require the use of powerful high-voltage devices to switch their circuits. To reduce the overall dimensions of the substation, switchgears with insulating media with good thermal conductivity (oil) are usually used.

      Our company offers financing and construction of ultra-high voltage and high voltage substations and other facilities around the world in accordance with local regulations.

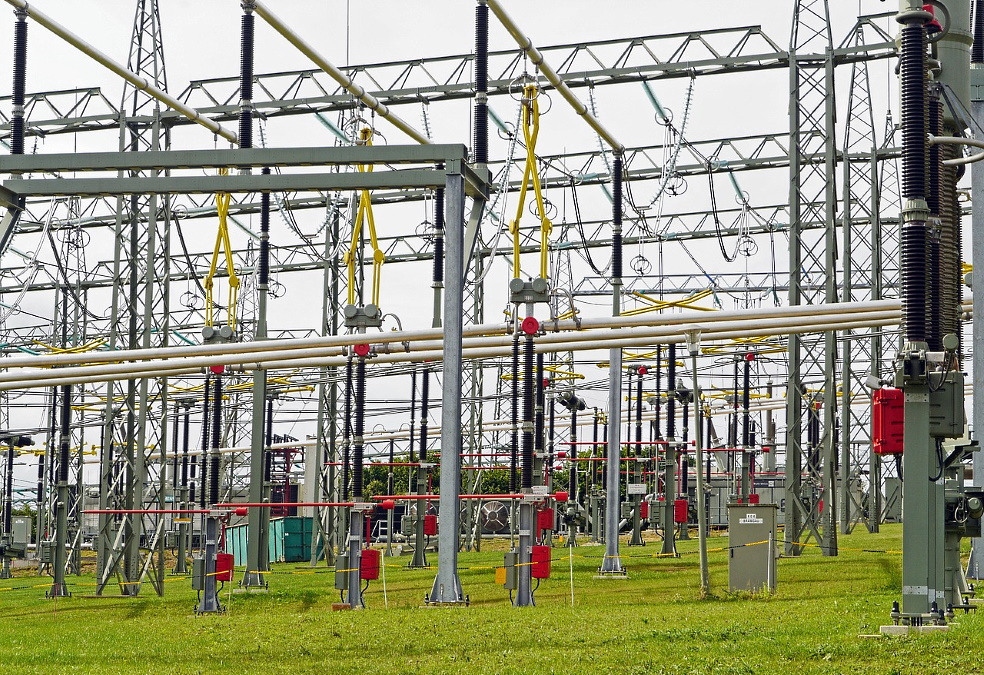

      Construction of local area substations

      Local area substations are connected directly to power plants or to high-voltage substations through overhead or underground power lines.

      These facilities provide energy to local areas with a large number of consumers.

      Modern technologies allow you to build these objects both in an open area, and in densely built-up urban areas. The number of busbars and other technical features of local substations are determined by the type, quantity and characteristics of electricity consumers.

      In terms of functionality, local electrical substations are divided into transmission, converter substations, etc. Complete transformer substations (MCTS and CCTS) are also widely used, which directly supply electric power to apartment buildings, industrial enterprises and other facilities.

      SWIG offers a full range of services for the financing and construction of local electrical substations, as well as their modernization, repair and maintenance.

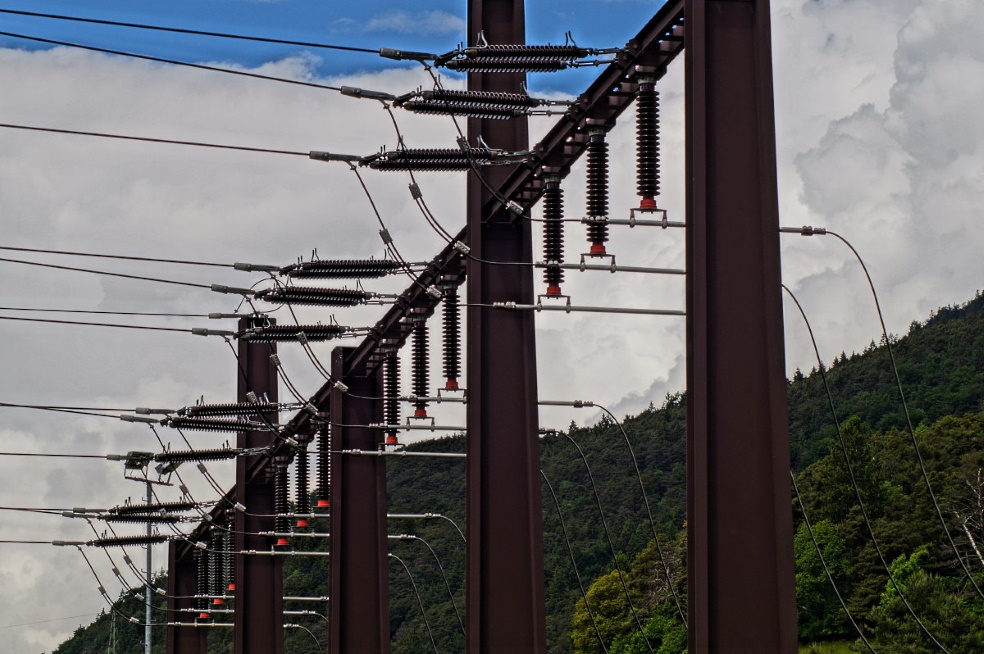

      New approaches to the construction of electrical substations

      Advances in science have contributed to the implementation of energy-efficient, economical and safe technologies for the design and construction of electrical networks and substations.

      New approaches to the construction of electrical substations

      We and our partners are actively introducing innovative technologies and approaches to the construction of electrical substations, which have already demonstrated success in other energy projects.

      Our company is developing rapidly along with the global energy industry, so every new project meets modern requirements.

      We have extensive experience in implementing capital-intensive projects around the world, including Iran, Algeria, Ecuador, Honduras and other countries.

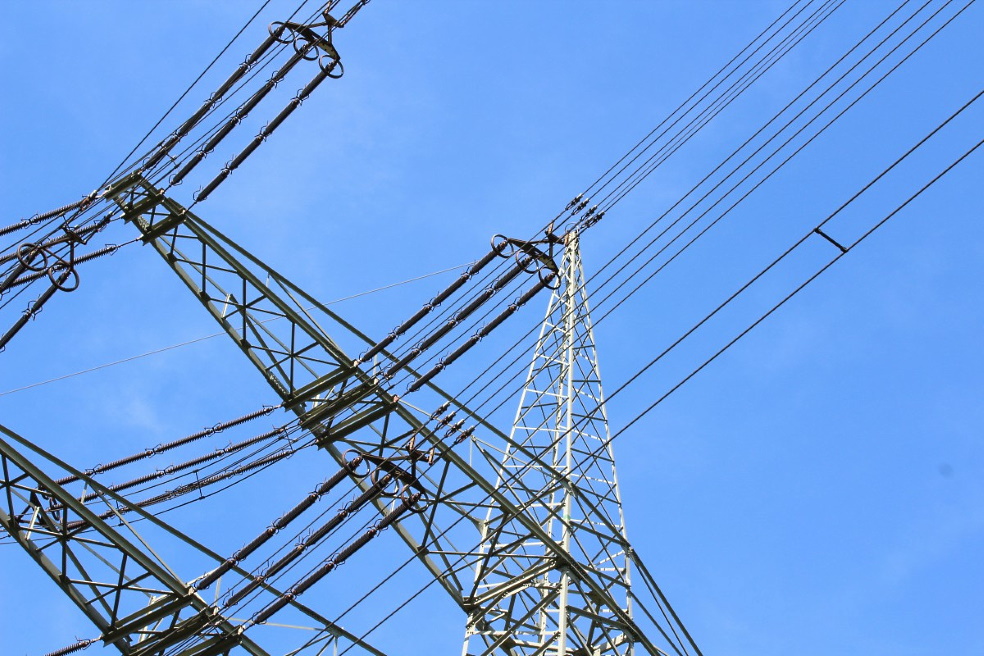

      Smart grids and substations

      The so-called smart grids and smart substations optimize communication between different distribution systems, renewable energy sources and consumers.

      These intelligent technical solutions create all the necessary conditions for the distribution of a large amount of energy in one network. Smart electrical substations use a much larger number of switches than conventional ones.

      Typically, these objects are very compact and efficient.

      They have integrated monitoring and control systems, and continuous monitoring provides a very good level of optimization. Such facilities have numerous advantages, including high stability, weather resistance and excellent performance.

      Smart grids and substations always use remote control. Systems are fully automated and self-updating, while remote control significantly reduces downtime and optimizes load.

      The development of smart grids has led to the wider use of computer technology and equipment in the construction of modern electrical substations.

      SCADA system

      Providing fast and accurate information about the energy system requires significant resources, so modern electrical substations use new automated solutions.

      Among them, the SCADA system (Supervisory Control And Data Acquisition).

      Providing fast and accurate information about the energy system requires significant resources, so modern electrical substations use new automated solutions

      This system serves to control the position of switching devices, circuit breakers, and disconnectors; control the current parameters of individual phases; control voltage on the bus and much more.

      An automated system collects all the parameters of the substation. Modern equipment immediately informs operators of emergency situations, including breakdowns, unauthorized entry into the facility and much more. Data is collected automatically or at the request of the operator.

      The use of modern automated systems ensures reliable and efficient operation of the substation.

      SF6 gas-insulated switchgears

      With the development of gas-insulated switchgear technology, the approach to the construction of electrical substations has changed significantly. This is an innovative technology in which all equipment is placed in a sealed metal case filled with SF6 gas (sulfur hexafluoride).

      Since the 2000s, this technology has made it possible to seal equipment with voltages up to 750 kV. Due to the highest degree of equipment integration, modern substations take up much less space and practically do not require periodic maintenance.

      High-voltage vacuum switchgears

      Vacuum technology has shown even better results than using air, gas or oil. High-voltage vacuum switchgears are safer and more reliable in situations where trips often occur, including a short circuit. The advantage of vacuum switchgears is that they are almost maintenance free.

      The dielectric strength of a vacuum is 8 times higher than that of air, and 4 times higher than that of gas at a pressure of 1 bar. Due to this, the distance between the open contacts can be quite short, up to 8 mm at 35 kV.

      In addition, the dielectric strength of the vacuum is quickly restored after the arc is completely extinguished. This technology has been successfully used for capacitor banks.

      Vacuum switchgears do not harm the environment, consume little energy and have a high reliability

      Vacuum switchgears do not harm the environment, consume little energy and have a high reliability.

      They do not require significant maintenance costs, but, as a rule, they are expensive. In each case, the solution must be selected individually, based on the requirements of a particular project.

      High-voltage hybrid switchgears

      In recent years, engineering companies have been actively using high-voltage hybrid switchgears in the construction of electrical substations.

      These devices combine the benefits of vacuum and gas technology. The arc resistance of a gas is much higher than that of a vacuum. Therefore, in hybrid models, gas is the main medium, and vacuum is used to completely turn off the current.

      Recently, attempts have been made to develop a mechanism for controlling a hybrid switchgears that would have better control. Modern devices of this type synchronize and coordinate the movements of individual modules in less than a millisecond.

      Thanks to the different operating modes, hybrid solutions are extremely efficient.

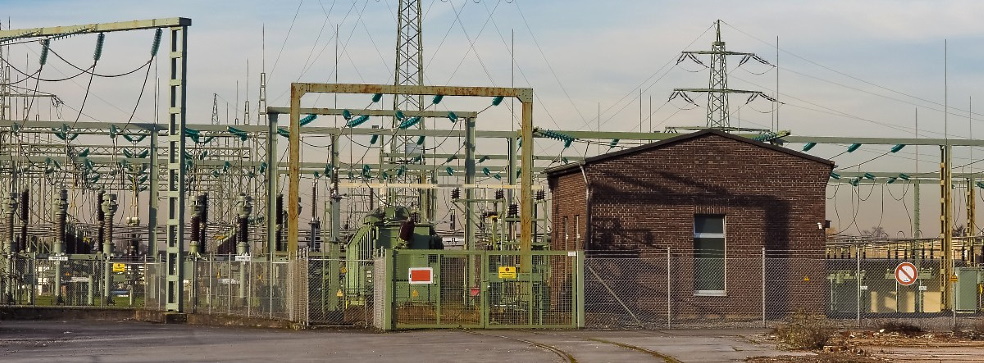

      Modernization of electrical substations

      As technology advances, the reliability of power supply systems becomes paramount.

      Companies that operate substations expect increased efficiency, maintainability, reliability and safety.

      Outdated electrical substations mean frequent breakdowns, long downtime, significant electrical losses and high maintenance and repair costs.

      The reliability problem manifests itself when equipment with different levels of reliability is installed at substations during modernization. Operation of such equipment without regard to interoperability leads to significant risks, including economic ones.

      Modernization of electrical substations

      A systematic approach and integrated project implementation with the maximum automation of all processes are fundamental principles of our services in the field of design and construction of substations.

      SWIG, with partners, develops all substations with an emphasis on reliability, efficiency and safety.

      One of the areas of work is the modernization of electrical substations, including the introduction of digital technologies, automated control systems and modern high-voltage devices.

      The rapid development of communications and computer technology, a gradual transition to automation of control systems requires constant modernization of these facilities.

      In Europe and the USA, technological progress in recent years has led to a significant increase in the efficiency of energy systems, changing the principles of design and construction of electrical substations and their infrastructure.

      Technical solutions give customers a number of advantages:

      • downtime is minimized through the use of more reliable control systems;
      • modern switchgears provide reliable power supply with minimal facility maintenance;
      • smart microprocessor devices automate the monitoring and control of substations;
      • the risk of major accidents and associated costs is reduced;
      • operating costs of the substation are reduced.

      Are you looking for innovative technical solutions for a new substation?
      Do you need a reliable contractor for the construction and modernization of an electrical substation?

      Contact our consultants and learn more about our capabilities.

      We and our partners offer a full range of financial and construction services for business.
      Industries and Services
      Project finance
      Project finance
      Gas turbine power plants (GTPP)
      Gas turbine power plants (GTPP)
      Solar photovoltaic power plants (PV)
      Solar photovoltaic power plants (PV)
      Solar thermal power plants (STPP)
      Solar thermal power plants (STPP)
      Long-term loan
      Long-term loan
      Structured finance
      Structured finance
      Investment engineering
      Investment engineering
      Investment financing
      Investment financing
      Investment lending
      Investment lending
      Publications
      Energy engineering: EPC contracts for municipal and industrial facilities
      Energy engineering: EPC contracts for municipal and industrial facilities
      SWIG offers financing and energy engineering services, including the introduction of renewable sources of heat and electricity and innovative energy-saving technologies.
      Wind energy consulting, financing, construction, operation & maintenance
      Wind energy consulting, financing, construction, operation & maintenance
      If you are interested in wind energy, we offer investment consulting, financing, installation & maintenance of wind turbines or wind farms anywhere in the world.
      Industrial engineering services and EPC contracts
      Industrial engineering services and EPC contracts
      Industrial engineering services are widely demanded, especially in the energy sector, oil and gas industry and other capital-intensive industries: EPC contracts.
      International engineering: financing and construction of projects around the world under EPC contracts
      International engineering: financing and construction of projects around the world under EPC contracts
      International engineering services are becoming more popular, contributing to the development of energy, the growth of industry and infrastructure: financing, construction and EPC contract.
      To consider an application for financing, fill out the form and send it to us by e-mail along with the project brief, or contact our experts
      Order service

      Financing and Engineering
      Thermal power plant project financing
      Thermal power plant project financing
      SWIG offers project finance for the construction of thermal power plants with a minimum down payment (10%) for our clients: investment loan models.
      Wind farm project financing
      Wind farm project financing
      SWIG promotes investments and offers financial models with a minimum contribution (10 %) for the construction of large wind farms around the world.
      Solar power plant project financing
      Solar power plant project financing
      SWIG offers financial models with a minimum contribution (10%) and long-term investments for the construction of large solar power plants around the world.
      Substation design
      Substation design
      We offer a full range of services for financing and engineering design of electrical substations, the construction and modernization of existing facilities around the world.
      Solar power plant design
      Solar power plant design
      We offer financing, electrical engineering design for solar power plants, structural design, as well as the development of security and monitoring systems.
      Waste processing plant financing
      Waste processing plant financing
      SWIG promotes long-term investments with a minimum project initiator contribution (10%) and offers financing for the construction of waste processing plants around the world.

      Back to list
      • Thermal Power Plants
      • Hydroelectric Power Stations
      • Solar Power Plants
      • Wind Farms
      • Electrical Substations
        • Financial model of electrical substation
        • Electric substation financing
        • Substation design
        • Substation construction
        • Substation modernization
      • Waste Processing Plants
      • Water Treatment Plants
      • Sea Ports and Terminals
      • Liquefied Natural Gas Plants
      • LNG Regasification Terminals
      • Mining and Processing Plants
      • Chemical Plants
      • Mineral Fertilizer Plants
      • Cement Plants
      Our experts will answer any question that interests you
      Ask a Question
      © 2024 Skywalk Investment Group. All Rights Reserved
      Address
      Burj Khalifa 144th & 146th Floor, Sheikh Mohammed bin Rashid Blvd, Downtown Dubai - UAE
      Cookies | Notice | Privacy Notice | Disclaimer | Sitemap
